Accurately Recorded Boundaries Of Internal And External Space Is Important For Any Condominum Survey

A condominium is a property development consisting of multiple individual units, each owned separately. These units can be either 2D land divisions or 3D sections of a building. Condominiums also include common areas that are jointly owned by all residents or members of the development.

Condominiums are created for residential high-rise buildings, commercial strip malls, duplex and semi-detached buildings, bare land condominiums which model a conventional subdivision, and everything in between.

We as surveyors can be involved in condominium projects even before the project breaks ground by completing proposed condominium plans for the purpose of pre-selling units and including the plan in disclosure documents. We help you every step of the way including subdivision and condominium applications with the municipality, preparation of the condominium plans, preparation of documents required to have your condominium plan registered, and registration of the plan at Land Titles.

Condominium Surveys

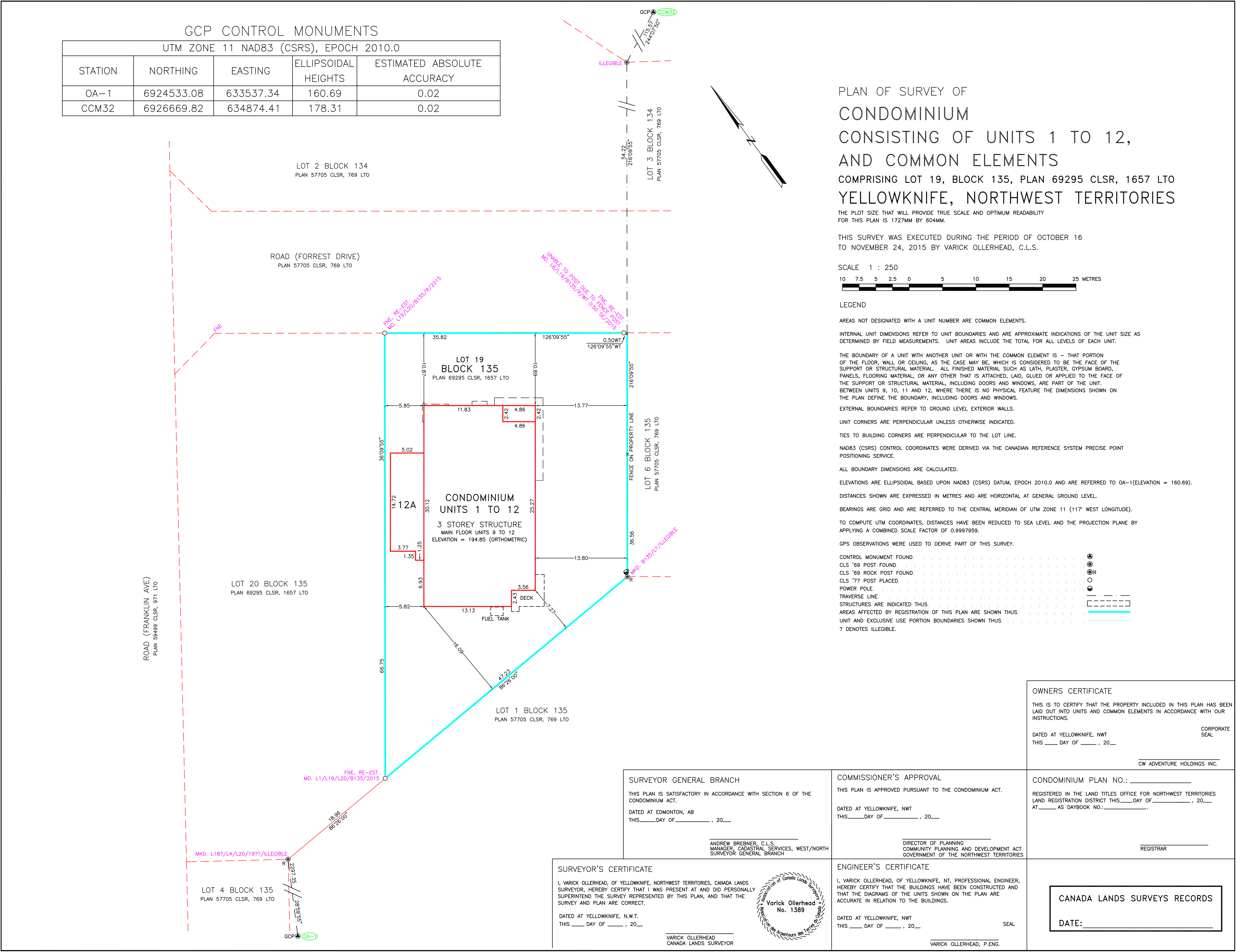

ARROW: graphic symbol showing map orientation, indicating the north direction CONTROL MONUMENT TABLE: are physical markers with known coordinates used by surveyors TITLE: Identifies the type of survey, record, registration and property’s location PAPER SIZE: set to a convenient length and width for printing SURVEY DATE: effective date on which survey work is carried out and finalized SCALE: ruler ratio that measures distances from the drawing to real world LEGEND: provides explanations of notes, symbols, lines, and colors to enhance visual clarity CERTIFICATION BOX: to be signed or sealed to attest the fulfillment of requirements GROUND CONTROL POINTS: shows the location of the found Control Monuments and Stations GROUND CONTROL POINTS: shows the location of the found Control Monuments and Stations SURROUNDING LOTS: Adjacent lots that are immediately next to the property SURROUNDING LOTS: Adjacent lots that are immediately next to the property SURROUNDING LOTS: Adjacent lots that are immediately next to the property SURROUNDING LOTS: Adjacent lots that are immediately next to the property SURROUNDING LOTS: Adjacent lots that are immediately next to the property SURVEYED LOT: land area where the Condominium Survey was conducted BUILDING: structure's outer edge & corners to be measured SURVEYED LOT: land area where the Condominium Survey was conducted TIE LINES: measured lines from control point to lot's corner to ensure survey accuracy TIE LINES: measured lines from control point to lot's corner to ensure survey accuracy PROPERTY BOUNDARY: defines the legal limit of the surveyed area DIMENSION: measurement of the property line in meters DIMENSION: measurement of the property line in meters DIMENSION: measurement of the property line in meters DIMENSION: measurement of the property line in meters BEARING: measured direction of the property line BEARING: measured direction of the property line BEARING: measured direction of the property line BEARING: measured direction of the property line

ARROW: graphic symbol showing map orientation, indicating the north direction

CONTROL MONUMENT TABLE: are physical markers with known coordinates used by surveyors

TITLE: Identifies the type of survey, record, registration and property’s location

PAPER SIZE: set to a convenient length and width for printing

SURVEY DATE: effective date on which survey work is carried out and finalized

SCALE: ruler ratio that measures distances from the drawing to real world

LEGEND: provides explanations of notes, symbols, lines, and colors to enhance visual clarity

CERTIFICATION BOX: to be signed or sealed to attest the fulfillment of requirements

GROUND CONTROL POINTS: shows the location of the found Control Monuments and Stations

GROUND CONTROL POINTS: shows the location of the found Control Monuments and Stations

SURROUNDING LOTS: Adjacent lots that are immediately next to the property

SURROUNDING LOTS: Adjacent lots that are immediately next to the property

SURROUNDING LOTS: Adjacent lots that are immediately next to the property

SURROUNDING LOTS: Adjacent lots that are immediately next to the property

SURROUNDING LOTS: Adjacent lots that are immediately next to the property

SURVEYED LOT: land area where the Condominium Survey was conducted

BUILDING: structure’s outer edge & corners to be measured

SURVEYED LOT: land area where the Condominium Survey was conducted

TIE LINES: measured lines from control point to lot’s corner to ensure survey accuracy

TIE LINES: measured lines from control point to lot’s corner to ensure survey accuracy

PROPERTY BOUNDARY: defines the legal limit of the surveyed area

DIMENSION: measurement of the property line in meters

DIMENSION: measurement of the property line in meters

DIMENSION: measurement of the property line in meters

DIMENSION: measurement of the property line in meters

BEARING: measured direction of the property line

BEARING: measured direction of the property line

BEARING: measured direction of the property line

BEARING: measured direction of the property line

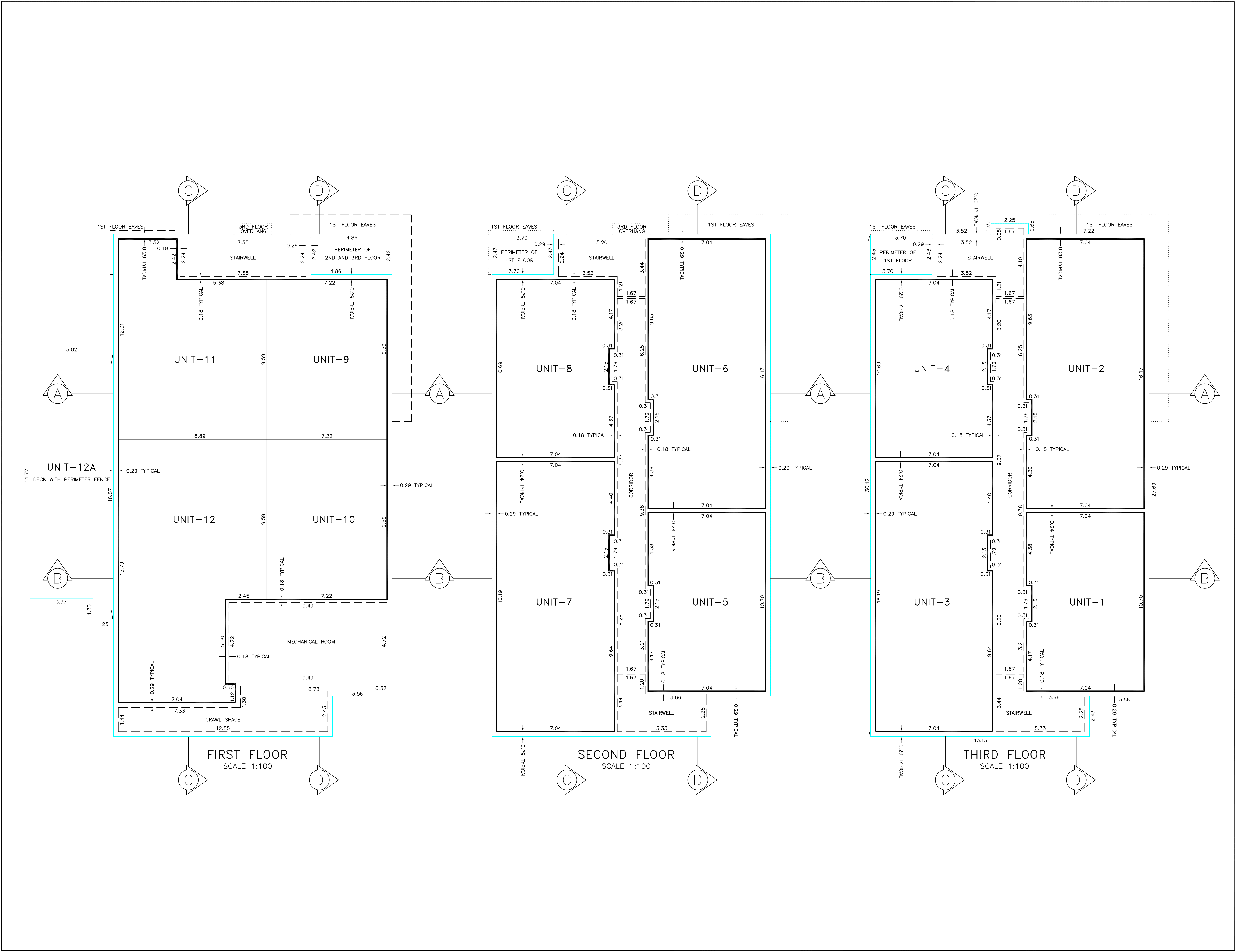

Condominium Surveys Floor Plans Interactive
BUILDING: structure's outer edge & corners to be measured BUILDING: structure's outer edge & corners to be measured BUILDING: structure's outer edge & corners to be measured CROSS SECTION: a virtual cut through of the building, refer to Section A-A CROSS SECTION: a virtual cut through of the building, refer to Section A-A CROSS SECTION: a virtual cut through of the building, refer to Section A-A CROSS SECTION: a virtual cut through of the building, refer to Section A-A CROSS SECTION: a virtual cut through of the building, refer to Section B-B CROSS SECTION: a virtual cut through of the building, refer to Section B-B CROSS SECTION: a virtual cut through of the building, refer to Section B-B CROSS SECTION: a virtual cut through of the building, refer to Section B-B CROSS SECTION: a virtual cut through of the building, refer to Section C-C CROSS SECTION: a virtual cut through of the building, refer to Section C-C CROSS SECTION: a virtual cut through of the building, refer to Section C-C CROSS SECTION: a virtual cut through of the building, refer to Section C-C CROSS SECTION: a virtual cut through of the building, refer to Section C-C CROSS SECTION: a virtual cut through of the building, refer to Section C-C CROSS SECTION: a virtual cut through of the building, refer to Section D-D CROSS SECTION: a virtual cut through of the building, refer to Section D-D CROSS SECTION: a virtual cut through of the building, refer to Section D-D CROSS SECTION: a virtual cut through of the building, refer to Section D-D CROSS SECTION: a virtual cut through of the building, refer to Section D-D CROSS SECTION: a virtual cut through of the building, refer to Section D-D SCALE: ruler ratio that measures distances from the drawing to real world at 1st Floor SCALE: ruler ratio that measures distances from the drawing to real world at 2nd Floor SCALE: ruler ratio that measures distances from the drawing to real world at 3rd Floor UNIT-12: one of the residential apartments on the 1st floor UNIT-10: one of the residential apartments on the 1st floor UNIT-9: one of the residential apartments on the 1st floor UNIT-11: one of the residential apartments on the 1st floor UNIT-7: one of the residential apartments on the 2nd floor UNIT-5: one of the residential apartments on the 2nd floor UNIT-6: one of the residential apartments on the 2nd floor UNIT-8: one of the residential apartments on the 2nd floor UNIT-3: one of the residential apartments on the 3rd floor UNIT-1: one of the residential apartments on the 3rd floor UNIT-2: one of the residential apartments on the 3rd floor UNIT-4: one of the residential apartments on the 3rd floor

BUILDING: structure’s outer edge & corners to be measured

BUILDING: structure’s outer edge & corners to be measured

BUILDING: structure’s outer edge & corners to be measured

CROSS SECTION: a virtual cut through of the building, refer to Section A-A

CROSS SECTION: a virtual cut through of the building, refer to Section A-A

CROSS SECTION: a virtual cut through of the building, refer to Section A-A

CROSS SECTION: a virtual cut through of the building, refer to Section A-A

CROSS SECTION: a virtual cut through of the building, refer to Section B-B

CROSS SECTION: a virtual cut through of the building, refer to Section B-B

CROSS SECTION: a virtual cut through of the building, refer to Section B-B

CROSS SECTION: a virtual cut through of the building, refer to Section B-B

CROSS SECTION: a virtual cut through of the building, refer to Section C-C

CROSS SECTION: a virtual cut through of the building, refer to Section C-C

CROSS SECTION: a virtual cut through of the building, refer to Section C-C

CROSS SECTION: a virtual cut through of the building, refer to Section C-C

CROSS SECTION: a virtual cut through of the building, refer to Section C-C

CROSS SECTION: a virtual cut through of the building, refer to Section C-C

CROSS SECTION: a virtual cut through of the building, refer to Section D-D

CROSS SECTION: a virtual cut through of the building, refer to Section D-D

CROSS SECTION: a virtual cut through of the building, refer to Section D-D

CROSS SECTION: a virtual cut through of the building, refer to Section D-D

CROSS SECTION: a virtual cut through of the building, refer to Section D-D

CROSS SECTION: a virtual cut through of the building, refer to Section D-D

SCALE: ruler ratio that measures distances from the drawing to real world at 1st Floor

SCALE: ruler ratio that measures distances from the drawing to real world at 2nd Floor

SCALE: ruler ratio that measures distances from the drawing to real world at 3rd Floor

UNIT-12: one of the residential apartments on the 1st floor

UNIT-10: one of the residential apartments on the 1st floor

UNIT-9: one of the residential apartments on the 1st floor

UNIT-11: one of the residential apartments on the 1st floor

UNIT-7: one of the residential apartments on the 2nd floor

UNIT-5: one of the residential apartments on the 2nd floor

UNIT-6: one of the residential apartments on the 2nd floor

UNIT-8: one of the residential apartments on the 2nd floor

UNIT-3: one of the residential apartments on the 3rd floor

UNIT-1: one of the residential apartments on the 3rd floor

UNIT-2: one of the residential apartments on the 3rd floor

UNIT-4: one of the residential apartments on the 3rd floor

Condominium Surveys Cross-Sections

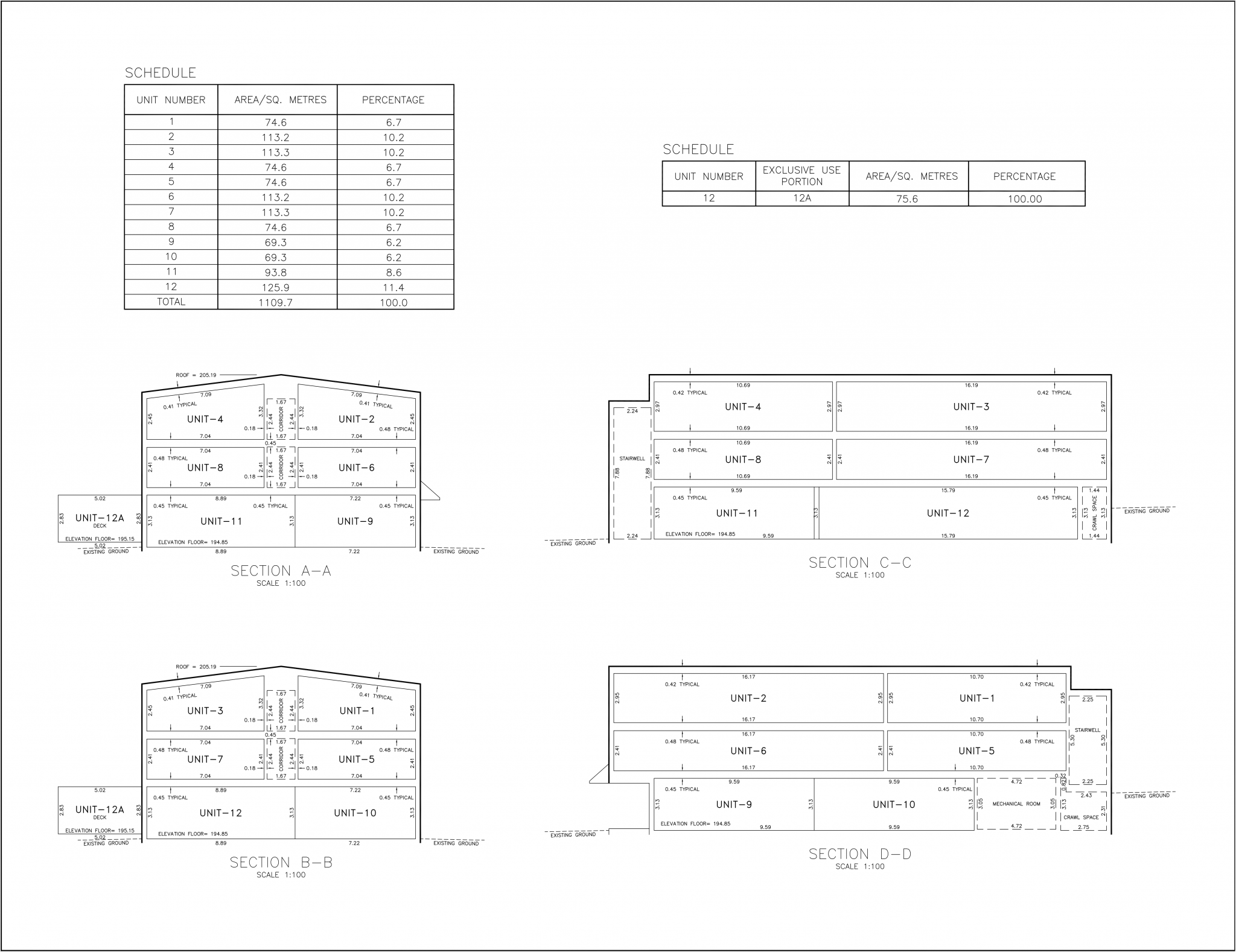

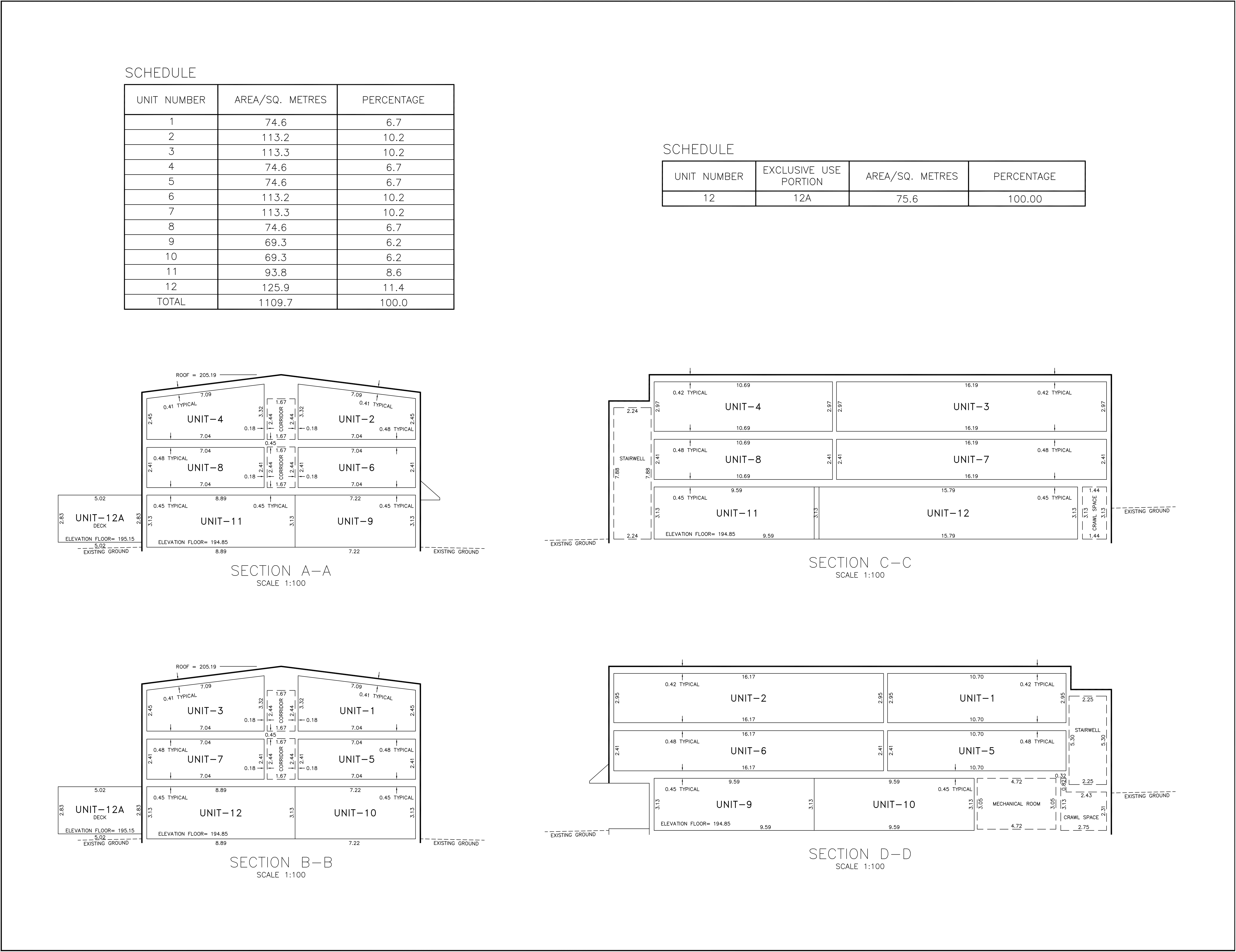

BUILDING CROSS SECTION: elevated cut through of Section B-B of the structure BUILDING CROSS SECTION: elevated cut through of Section A-A of the structure BUILDING CROSS SECTION: elevated cut through of Section C-C of the structure BUILDING CROSS SECTION: elevated cut through of Section D-D of the structure UNIT-12: one of the residential apartments on the 1st floor UNIT-10: one of the residential apartments on the 1st floor UNIT-9: one of the residential apartments on the 1st floor UNIT-10: one of the residential apartments on the 1st floor UNIT-11: one of the residential apartments on the 1st floor UNIT-9: one of the residential apartments on the 1st floor UNIT-11: one of the residential apartments on the 1st floor UNIT-12: one of the residential apartments on the 1st floor UNIT-7: one of the residential apartments on the 2nd floor UNIT-5: one of the residential apartments on the 2nd floor UNIT-6: one of the residential apartments on the 2nd floor UNIT-5: one of the residential apartments on the 2nd floor UNIT-8: one of the residential apartments on the 2nd floor UNIT-6: one of the residential apartments on the 2nd floor UNIT-8: one of the residential apartments on the 2nd floor UNIT-7: one of the residential apartments on the 2nd floor UNIT-3: one of the residential apartments on the 3rd floor UNIT-1: one of the residential apartments on the 3rd floor UNIT-2: one of the residential apartments on the 3rd floor UNIT-1: one of the residential apartments on the 3rd floor UNIT-4: one of the residential apartments on the 3rd floor UNIT-2: one of the residential apartments on the 3rd floor UNIT-4: one of the residential apartments on the 3rd floor UNIT-3: one of the residential apartments on the 3rd floor SCALE: ruler ratio that measures distances from the drawing to real world for Section B-B SCALE: ruler ratio that measures distances from the drawing to real world for Section A-A SCALE: ruler ratio that measures distances from the drawing to real world for Section C-C SCALE: ruler ratio that measures distances from the drawing to real world for Section D-D SCHEDULE: list of areas and percentages of each Units SCHEDULE: list of area and percentage exclusive for Unit-12A

BUILDING CROSS SECTION: elevated cut through of Section B-B of the structure

BUILDING CROSS SECTION: elevated cut through of Section A-A of the structure

BUILDING CROSS SECTION: elevated cut through of Section C-C of the structure

BUILDING CROSS SECTION: elevated cut through of Section D-D of the structure

UNIT-12: one of the residential apartments on the 1st floor

UNIT-10: one of the residential apartments on the 1st floor

UNIT-9: one of the residential apartments on the 1st floor

UNIT-10: one of the residential apartments on the 1st floor

UNIT-11: one of the residential apartments on the 1st floor

UNIT-9: one of the residential apartments on the 1st floor

UNIT-11: one of the residential apartments on the 1st floor

UNIT-12: one of the residential apartments on the 1st floor

UNIT-7: one of the residential apartments on the 2nd floor

UNIT-5: one of the residential apartments on the 2nd floor

UNIT-6: one of the residential apartments on the 2nd floor

UNIT-5: one of the residential apartments on the 2nd floor

UNIT-8: one of the residential apartments on the 2nd floor

UNIT-6: one of the residential apartments on the 2nd floor

UNIT-8: one of the residential apartments on the 2nd floor

UNIT-7: one of the residential apartments on the 2nd floor

UNIT-3: one of the residential apartments on the 3rd floor

UNIT-1: one of the residential apartments on the 3rd floor

UNIT-2: one of the residential apartments on the 3rd floor

UNIT-1: one of the residential apartments on the 3rd floor

UNIT-4: one of the residential apartments on the 3rd floor

UNIT-2: one of the residential apartments on the 3rd floor

UNIT-4: one of the residential apartments on the 3rd floor

UNIT-3: one of the residential apartments on the 3rd floor

SCALE: ruler ratio that measures distances from the drawing to real world for Section B-B

SCALE: ruler ratio that measures distances from the drawing to real world for Section A-A

SCALE: ruler ratio that measures distances from the drawing to real world for Section C-C

SCALE: ruler ratio that measures distances from the drawing to real world for Section D-D

SCHEDULE: list of areas and percentages of each Units

SCHEDULE: list of area and percentage exclusive for Unit-12A
